产品特点：
经过锻造和热处理的合金吊钩，安全倍数1:4.过载后吊钩不会脆断，只会慢慢变形。
高强度球墨铸铁起重轮，更好地保护起重链条，不易磨损。也可选配机械加工的一体成型的起重轮，安全系数更高。
经过热处理的优质齿轮钢加工的三级齿轮。
起重轮两侧装有整体封闭式轴承，试运行更顺畅，更平稳。
双棘爪刹车系统，大大提高了刹车安全系数。
两侧装有外形美观而紧凑的外壳，能很好的保护齿轮和刹车系统。
超强合金起重链条，G80级和G100级可根据要求选配。
可选配过载保护装置。
Product features:
After forging and heat treatment of the alloy hook, 1:4. hook will not overload safety factor after brittle fracture, only slowly deformation.
High strength ductile cast iron from the wheel, better protect the chain, not easy to wear. Can also choose the mechanical processing of the integrated molding of the lifting wheel, higher safety factor.
Three - stage gear of high quality gear steel with heat treatment.
On both sides of the lifting wheel with a whole closed type bearing, try running more smoothly, more stable.
Double pawl brake system, greatly improving the safety coefficient of brake.
Both sides are equipped with a nice and compact outer shell, which can protect the gears and brake system.
Super alloy lifting chain, G80 and G100 level can be selected according to the requirements.
Optional with overload protection device.

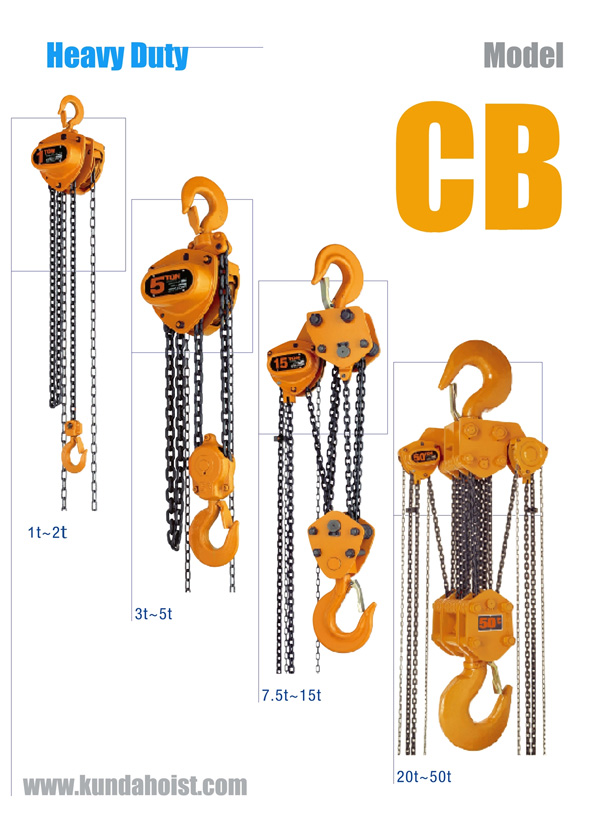

产品模型 | CB010 | CB015 | CB020 | CB030-1 | CB030-2 | CB050 | CB100 | CB200 |
|---|---|---|---|---|---|---|---|---|
| 额定起重量 (t) | 1 | 1.5 | 2 | 3 | 3 | 5 | 10 | 20 |
| 试验载荷 (t) | 1.25 | 1.87 | 2.5 | 3.75 | 3.75 | 6.25 | 12.5 | 25 |
| 标准起重高度 (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| 起重链条行数 | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 |
| 起重链条尺寸(mm) | 6×18 | 7.1×21 | 8×24 | 10×30 | 7.1×21 | 9×27 | 9×27 | 9×27 |
| 手拉力 (N) | 284 | 308 | 343 | 372 | 343 | 372 | 382 | 382×2 |
| 净重 (kg) | 11.3 | 16 | 17.7 | 26.6 | 22.5 | 37.25 | 75.5 | 192 |
| 毛重 (kg) | 11.6 | 16.3 | 18.1 | 22.8 | 27.4 | 38.3 | 78.5 | 215.5 |
